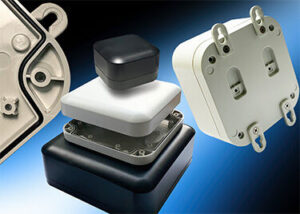

Hammond’s 1557 family features rounded corners and top face, providing a modern smooth style combined with enhanced environmental sealing. It is available in IP68 polycarbonate for indoor and outdoor use and economical IP66 rated ABS for indoor use. The versatile 1557 can be used as a desktop enclosure when fitted with the supplied feet, it can be pole-mounted using an accessory kit or wall mounted with either four mounting brackets for heavy-duty use or two keyhole mountings when flush-fitting is required. The sizes are 80 x 80 x 45 and 60mm; 120 x 120, 160 x 160 and 200 x 200 in heights of 45 and 70mm.

hammond 1557

It is increasingly being used as the IP68 sealed housing for electromechanical components as well as PCB-mounted systems. To give a rigid surface for mounting heavier electrical, electromechanical and electronic components a 2mm thick aluminium inner panel is also available. Available for all sizes, it is crewed into the existing PCB bosses in either or both the lid and base.

hammond 1557 panel



Key features of the 1557

  • The new optional inner panels give a strong mounting surface for heavier components.
  • The panels can be mounted into the moulded PCB stand-offs in either or both the lid and the base.
  • 80 x 80 with heights of 45 and 60mm and 120 x 120, 160 x 160 and 200 x 200 with heights of 45 and 70mm.
  • Available in black and grey.
  • Rounded corners and top face provide a modern attractive style.
  • Sealing is achieved with a pre-formed silicone removable gasket.
  • The UL94-5VA flammability rating polycarbonate versions are UV stabilized for outdoor and indoor use and are designed to meet IP68.
  • The polycarbonate versions are cUL and UL 508A listed to NEMA 4, 4X, 6 and 6P.
  • The economical UL94-HB rated ABS versions, designed to meet IP66, are intended for indoor use.
  • The top is secured with included M4 stainless steel machine screws which are threaded into corrosion-resistant bushings for repetitive assembly and disassembly.

For detailed technical specifications and downloadable CAD drawings and PDF files, visit hammfg.com/1557

To contact us to discuss a specific requirement, call +44 1256 812812, mail us at uksales@hammfg.com or use Live Chat via our hammfg.com/small-case web site. Click on the green “Need Help? Live Chat is Online” banner at the bottom of the page and you will be connected to our internal technical sales team. To help you in specifying your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from our web site.
