Our well-established plastic enclosure families, the 1591, which features integral vertical PCB mounting channels, and its sister, the 1591XX, with a plain interior are two of our best-selling ranges. These extremely versatile enclosures are available in many sizes, and are available with plain or flanged lids or plain or flanged bases. The flame-retardant ABS version is by far the most popular option; an economy version of all sizes is also available as standard, moulded in general purpose ABS. A further option is selected sizes available in translucent ice blue, crystal clear and IR-transparent red, moulded in polycarbonate. In the standard UL94 V-0 version the lid is secured with M3 x 10 mm machine screws threaded into integral brass inserts, perfect for applications when repetitive assembly and disassembly are required. In economy versions the lid is secured with self-tapping screws into solid posts to reduce cost when repeated access is not required.

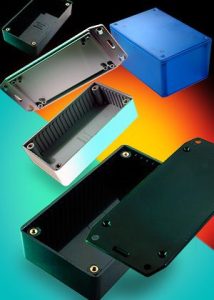

Key features of the 1591 range
- 13 sizes: 84mm x 56mm x 26mm to 190mm x 110mm x 61mm
- Flame retardant versions are available in beige, black, blue or grey
- Economy versions are available in black or grey
- The internal side walls have moulded-in card guides for vertical 1.6mm PCB mounting
- All sizes are available with plain or flanged lids or plain or flanged bases
- Standard versions are moulded in UL 94-V0 flame retardant ABS
- Economy versions are moulded in general purpose ABS
- Tongue and groove construction gives IP54 sealing
- In standard version the lid is secured with M3 x 10 mm machine screws threaded into integral brass bushes, perfect for applications when repetitive assembly and disassembly are required
- In economy versions the lid is secured with self-tapping screws into solid posts for cost saving when repeated access is not required
- Optional adaptors fit into the vertical slots enabling PCBs to be mounted horizontally in a choice of multiple positions within the height of the enclosure

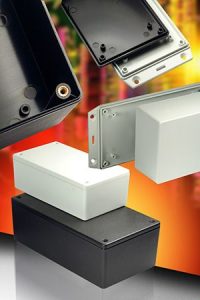

Key features of the 1591XX economy range
- 12 sizes: 84mm x 56mm x 27mm to 221mm x 150mm x 62mm
- Plain internal side walls for horizontal PCB mounting
- PCB mounting bosses moulded into the lid and base
- Available with plain and flanged lids
- Standard black and grey versions are moulded in 94-V0 flame retardant ABS
- Translucent blue and black economy versions are moulded in general purpose ABS
- Tongue and groove construction gives IP54 sealing
- In economy versions the lid is secured with self-tapping screws into solid posts for cost saving when repeated access is not required
- Optional adaptors fit into the vertical slots enabling PCBs to be mounted horizontally in a choice of multiple positions within the height of the enclosure

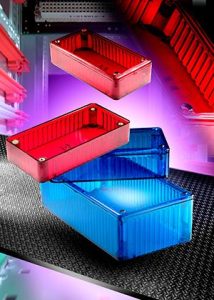

Key features of the 1591T translucent range
