The Bifold Group has broadened its valve line with a range of medium pressure ball and needle valves, delivering safe, reliable operation to 20,000psi/1,379bar.
Both valve types are available in 1/4”, 3/8”, 9/16”, 3/4” and 1” tubing sizes, comprising of a coned and threaded connection. The connection method allows for increased flow rates due to the larger bore sizes, common within this range. The valves are constructed from high tensile 316L CW stainless steel (exotic materials available).

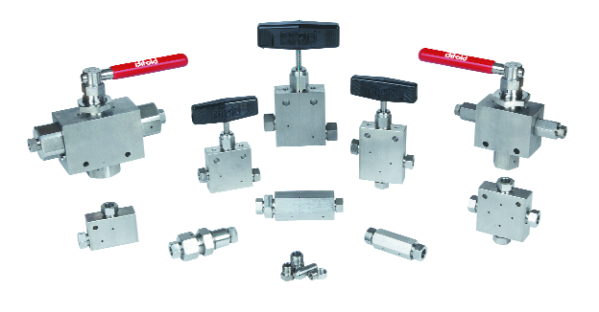

The range comprises of needle valves, ball valves, manifold valves, check valves, fittings and adaptors.
The medium pressure ball valve range is available as a floating or trunnion style and incorporates a locking device. This design allows the valve to maintain it’s through panel mount function and is pressure tested in accordance with API 598 & BS EN 12266-1, and is proof tested to 1.5 times maximum working pressure.
These valves are offered in a wide range of configurations, with an operating temperature range of -46°C to 225°C (-20°C to 180°C) as standard.
The medium pressure needle valve range is designed with a maintenance-free stem sealing system. This eliminates the loss of integrity often experienced over time with traditional packing glands. There is also a secondary metal to metal seal system which reduces potential leak paths.
Further product advantages include the stem treatment to prevent galling, non-wetted threads, fail safe open and closed system.
These valves are offered in a range of configurations, with an operating temperature of -73°C to 315°C (-20°C to 170°C) as standard.
