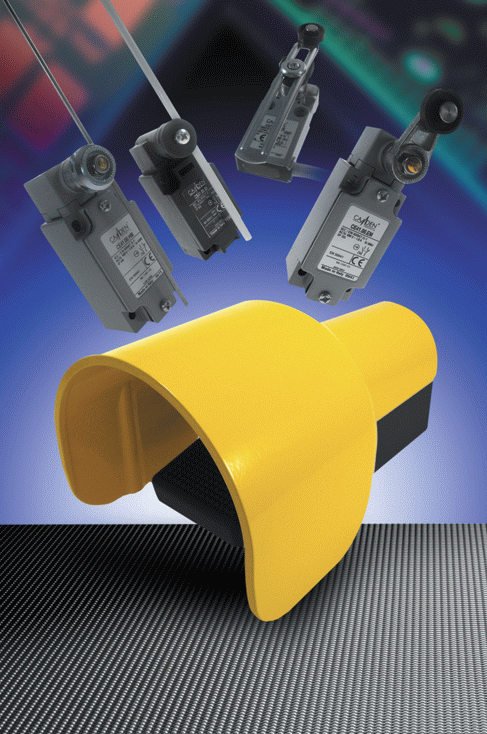

A new heavy duty guarded footswitch has been launched by CamdenBoss to extend its family of control products.
Well suited for use in heavy duty applications, the new industrial die-cast footswitch provides a choice of single- or double-pole snap action or slow action contact blocks with normally open (NO) or normally closed (NC) contacts. A combined snap/slow action double-pole version is also available.
Contact blocks feature a 500V 10A fuse to protect against short circuits and are rated at 250V/6A, 400V/4A and 500V/1A AC or 24V/6A, 125V/1.1A and 250V/0.4A DC. Insulation voltage is 500V AC, 600V DC.
Actuating forces for the switches are 10N for single snap action, 12N for single slow action, 13N for double snap action and 15N for double slow action. Additional features include rising saddle washer terminal connections, positive opening operation, silver contacts, anti-slip foot pedal and non-slip rubber feet.
CE approved, the new CamdenBoss heavy duty guarded footswitch is supplied with an IP65 cable gland. Unguarded versions are also available.
The new CamdenBoss heavy duty guarded footswitch extends the company’s range of control products that includes 22mm diameter control switches (flush pushbuttons, on-off pushbuttons, arrow pushbuttons and start/stop pushbuttons), 40mm E-stop key release and twist release, 60mm E-stop twist release and selector switch, mounting plates, contact blocks, dust caps, keys for E-stop key release and button surrounds, control stations including standard boxes and button boxes for one to six buttons with suitable mounting plates.
CamdenBoss
T: 01638 716 101
