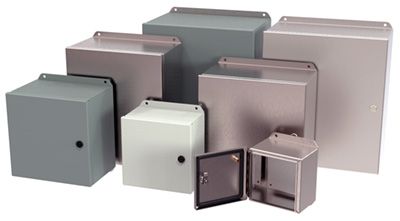

When it comes to small/mid-sized wall-mounted enclosures to house electrical and/or electronic equipment and protect against harsh, industrial environments, our EJ family gives specifiers an outstanding choice of sizes and materials, enabling them to choose the most appropriate enclosure for the intended application and environment. They are designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures or for any use where environmental sealing and/or corrosion resistance are primary requirements. UL Listing is a considerable benefit if the equipment is to be exported to North America.
Common features across all material options
- Smooth, continuously welded seams without knockouts, cutouts, or holes.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- 6mm thick welded brackets provide for enclosure mounting.
- Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
- Door latches feature the added security of a quarter turn slot fixing requiring the use of a tool for opening.
- Quarter turn latches for easy opening. Added security available with alternate latches or padlock adapter kits.
- Seamless poured-in place gasket.
- All sizes apart from the smallest include a removable 1.6mm galvanized inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- Grounding and panel mounting hardware provided.
- Inner panels are unpainted galvanised steel.
28 sizes from 102mm x 102mm x 76mm to 406mm x 356mm x 254mm- Sealed to IP66, NEMA Type 3R, 4, 12 and 13
- The body and cover are formed from 1.3mm mild steel
- Cover and enclosure are finished with a recoatable powder inside and out with choice of ANSI 61 smooth Grey (GY) or RAL7035 textured light grey (LG).
The 304 and 316L stainless steel versions
22 sizes from 102mm x 102mm x 76mm to 406mm x 356mm x 254mm- Sealed to IP66, NEMA Type 3R, 4, 4X, 12 and 13
- Body and cover are formed from 1.3mm 304 or 316 stainless steel.
22 sizes from 102mm x 102mm x 76mm to 406mm x 356mm x 254mm- Sealed to IP66, NEMA Type 3R, 4, 4X, 12 and 13
- Formed from 2mm Type 5052 H-32 aluminium.
Contact us
To contact our technical sales team about the enclosure requirements for your project, call +44 1256 812812, mail us at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from our web site.
