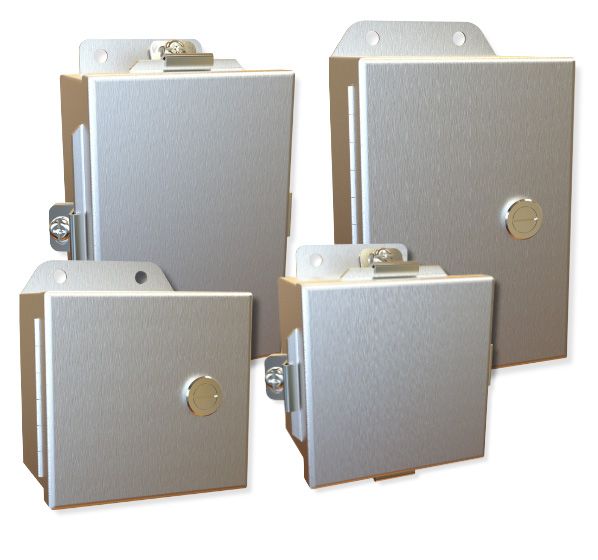

For industrial applications Hammond offers many different families of sealed, UL listed and NEMA rated enclosures fabricated from aluminium
Aluminium is an interesting element. It is lightweight, with roughly 1/3 the weight of steel, it is soft and easily worked, which is a great benefit, particularly if on-site modifications are needed. It is ductile and non-magnetic, and it has excellent thermal and electrical conductivity. It is non-corrosive, so it doesn’t need any form of protective coating but can be left in its natural state, where a layer of protective aluminium oxide forms naturally.
For industrial applications Hammond offers many different families of sealed enclosures fabricated from aluminium, mild steel, stainless steel, polycarbonate or GRP. Specifiers have a wide choice of materials, sizes, sealing ratings and UL Listings to meet the varying requirements of the environment where the equipment will be installed.
An overview of Hammond’s main industrial aluminium products, manufactured from sheet aluminium or are diecast, is below. Click here to see the details of our main industrial aluminium enclosures.
Selected environmentally sealed aluminium families for use in industrial environments are below.

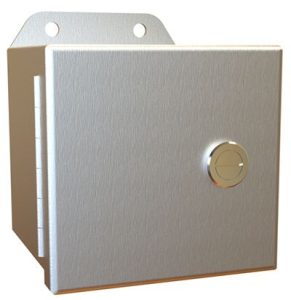

The IP66 (NEMA Type 3R, 4, 4X, 12 and 13) EJAL junction box
- 22 sizes from 102mm x 102mm x 76mm (4″ x 4″ x 3″) to 406mm x 356mm x 243mm (16″ x 14″ x 10″).
- Continuously hinged cover has aluminium hinge and provides 180° opening.
- Quarter turn tool operated door latches.
- Welded mounting brackets.
- Seamless poured-in place gasket.
- A removable 1.9mm (14 gauge) galvanised steel inner panel for all sizes except the very smallest.
- UL Listed
The IP66 (NEMA Type 4, 4X, 12 and 13) 1414 family with clamped lift-off front panels
- 10 sizes from 102mm x 102mm x 76mm (4″ x 4″ x 3″) to 406mm x 356mm x 243mm (16″ x 14″ x 10″).
- Removable front cover with clamped closure.
- Welded mounting brackets.
- Seamless poured-in place gasket.
- A removable 1.9mm (14 gauge) white powder coated steel inner panel for all sizes except the very smallest.
- UL Listed

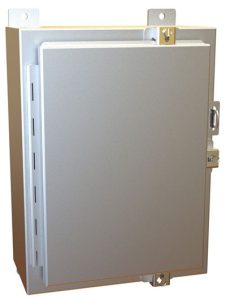

The IP66 (NEMA Type 4, 4X, 12 and 13) 1418 family for larger requirements
- 12 sizes from 406mm x 305mm x 152mm (16″ x 12″ x 6″) to 1524mm x 914mm x 305mm (60″ x 36″ x 12″).
- Hinged front cover with clamped closure and padlock security.
- Welded mounting brackets.
- Seamless poured-in place gasket.
- A removable 2.8mm (12 gauge) white powder coated steel inner panel for all sizes.
- UL Listed
The IP68 (NEMA Type 4, 4X, 6, 6P, 12 and 13) 1590Z rugged thick wall diecast aluminium enclosures
- 24 sizes from 50mm x 45mm x 30mm to 400mm x 230mm x 180mm.
- All sizes are available in a natural finish or powder coated inside and out in textured black or smooth grey RAL7001.
- All sizes except the smallest 50mm x 45mm x 30mm 1590Z060 have an IEC 62262 impact rating of IK08, confirming protection against 5 Joules of impact by a 25mm diameter striking element, the equivalent to the impact of a 1.7kg mass dropped from 300mm above the impacted surface.
- IP68 (NEMA Type 4, 4X, 6, 6P, 12 and 13) environmental protection.
- 16 of the sizes are available with an optional 1.6mm galvanized steel inner panel.
- Captive stainless steel machine screws outside the sealed area secure the lid into tapped holes in the base, allowing repeated access without degrading the sealing.
- Easy to secure to any surface using blind holes outside the sealed area.
- UL Listed
To contact us to discuss a specific project requirement, call +44 1256 812812, mail us at uksales@hammfg.com or eusales@hammfg.com
To help you in specifying your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from our web site
