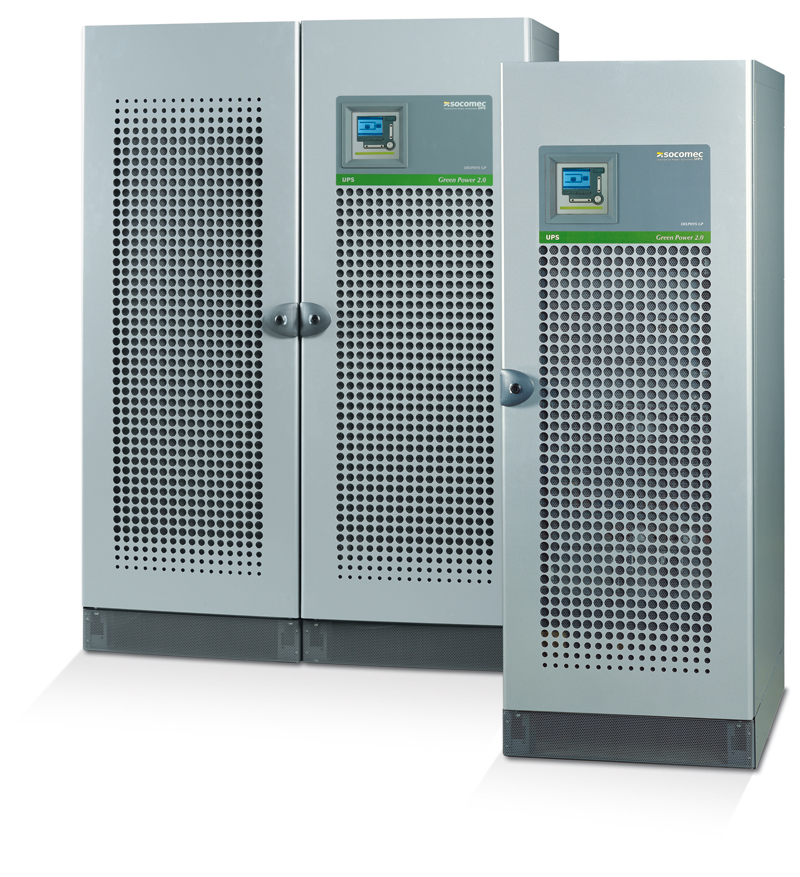

Green Power 2.0 MASTERYS GP from 10 to 120 kVA/kW -ultra high energy efficiency and maximum power availability
Your solution for r
> Data centres
> Telecommunications
> Service sector
> IT-Networks / Infrastructures

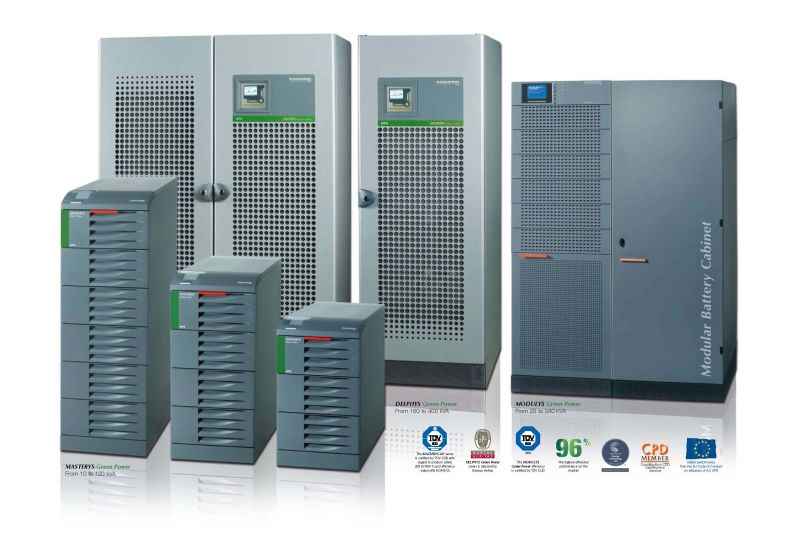

With units available from 10 kW to 500 kW, the Socomec Green Power (GP) 2.0 UPS range has been developed to allow organisations to protect their mission critical infrastructures and ensure that their UPS equipment is fully compatible with the latest developments in server architecture.
Energy Saving: high efficiency without compromise
- Offers the highest efficiency in the market using VfI – double conversion Mode, the only UPS working-mode that assures total load protection against all mains quality problems.
- Ultra high efficiency output independently tested and verified by an international certification organization in a wide range of load and voltage operating conditions, to have the value in the real site conditions.
- Ultra high efficiency in VfI mode is provided by an innovative topology (3-Level technology) that has been developed for all the green Power UPS ranges.
Full-rated power: kW=kVA
- No power downgrading when supplying the latest generation of servers (leading or unity power factor).
- Real full power, according to IEc 62040: kW=kVA (unity power factor design) means 25% more active power available compared to legacy UPS.
- Suitable also for leading power factor loads down to 0.9 without apparent power derating.
Significant cost-saving (TCO)
- Maximum energy saving thanks to 96% efficiency in true double conversion mode: 50% saving on energy losses compared to legacy UPS gives significant savings in energy bill.
- UPS “self-paying” with energy saving.
- Energy Saver mode for global efficiency improvement on parallel systems.
- kW=kVA means maximum power available with the same UPS rating: no overdesign cost and therefore less €/kW.
- Upstream infrastructure cost optimization (sources and distribution), thanks to high performance IgBT rectifier.
- Battery configuration can be optimized, thanks to a very wide dc range.
- Extended battery life and performance: – long life battery, – very wide input voltage and frequency acceptance, without battery use.
- EBS (Expert Battery System) charging management improves battery service life.
Standard electrical features
- Dual input mains.
- Internal maintenance bypass.
- Backfeed protection: detection circuit.
- EBS (Expert Battery System) for battery management.
- Battery temperature sensor.
- External maintenance bypass.
- External battery cabinet.
- Additional battery chargers.
- Galvanic isolation transformer.
- Parallel kit.
- ACS synchronization system.
Standard communication features
- User-friendly multilingual interface with colour graphic display.
- Commissioning wizard.
- 2 slots for communication options.
- MODBUS TCP.
- MODBUS/JBUS RTU.
- Embedded LAN interface (web pages, email).
Communication options
- Remote mimic panel.
- Dry-contact interface.
- Pro fibus .
- BACnet/IP interface.
- NET VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems.
Remote monitoring service
- Remote mobile and web-based surveillance service connected 24/7 to your local Socomec Service Centre.
