The 1455F family of extruded aluminium enclosures incorporate external mounting flanges as an integral part of the enclosure. The flanges give a completely flat surface for securing the unit to a wall, so there are no joins where dirt could collect and the rigidity of the unit is increased. The four new sizes are all available as standard in either clear or black anodised finish and they all have two removable colour matched flat aluminium end panels. Originally available in lengths of 80mm and 120mm x 54mm (74mm across the flanges) x 23mm with four slots for mounting 50mm wide PCBs, the new sizes house 75mm and 100mm wide PCBs.

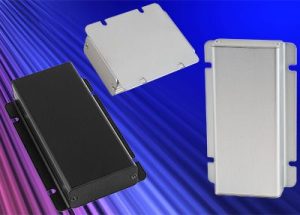

hammond 1455f new sizes

The additional sizes are:

120mm and 160mm x 78mm (98mm across the flanges) x 27mm for 75mm wide PCBs. There are four alternative slot positions for the board mounting.

120mm and 160mm x 103mm (123mm across the flanges) x 53mm high for 100mm wide PCBs. There are 11 alternative slot positions for the board mounting.



Key product attributes of the new 1455F sizes

  • truded aluminium construction with integral wall mounting flanges.
  • Two standard lengths, 120mm and 160mm, for housing 75mm and 100mm wide 1.6mm thick PCBs. Other lengths up to 1000mm to special order.
  • Standard clear or black anodised finish, other colours to special order.
  • The mounting flanges are finished with two notches on each side for securing screws.
  • Completely flat base for seamless mounting of the unit to a surface.
  • Two removable aluminium end panels for easy modification.
  • Four alternative horizontal mounting positions for the PCB in the 27mm high units to allow for different height components.
  • 11 alternative mounting positions for the PCB in the 53mm high units support multiple PCB sub-assemblies.
